Dakota Series

Multi-Family Specifications – PCS Dakota Series

Cabinet Box Construction

• End panels – ½” laminated particleboard double finished with clear maple interior

• Backs – 1/8” MDF with hang rails at tops and bottoms, wall cabinets with Clear Maple back

• Base Shelves – 1/2” fixed height full depth shelves to match cabinet interior

• Wall Tops & Bottoms – 1/2” clear maple laminated particleboard

• Wall Shelves – ¾” PVC edge banded adjustable height shelves to match cabinet interior

• Standard Toe Kicks - measure 3 ½” deep by 4 1/2” tall consisting of ¾” unfinished industrial particleboard with 1/8” laminated skins available to match

• Countertop Attachment Rails - ¾” industrial particleboard blocks with buildup available

• ADA cabinets available in most sizes and configurations

Doors, Drawers, and Drawer Fronts

• ¾” Thermally Fused Laminate (TFL) slab doors with PVC edge banded square edge profile

• Distinctive (full) overlay that reveals ¼” of face frames around doors and fronts available on DI style

• Drawers – ½” Laminate industrial particle drawer box sides with PVC banded edges and butt jointed construction

• Solid Maple Dovetail drawer boxes are available at additional charge *Includes ¼” bottom

• Drawer Bottoms – ½” laminated bottom

Face Framework:

• Solid kiln-dried Maple hardwood framework ¾” thick and 1 ½” wide *Face frame construction may be changed to Poplar for Glacier White and Folkstone Gray

• Face frames assembled under pressure with pocket screws for maximum strength

Sizes

• Standard widths available in 3” increments

• Full line of vanity cabinets available

• Custom sizes may be available upon request per PCS approval

Colors/Species

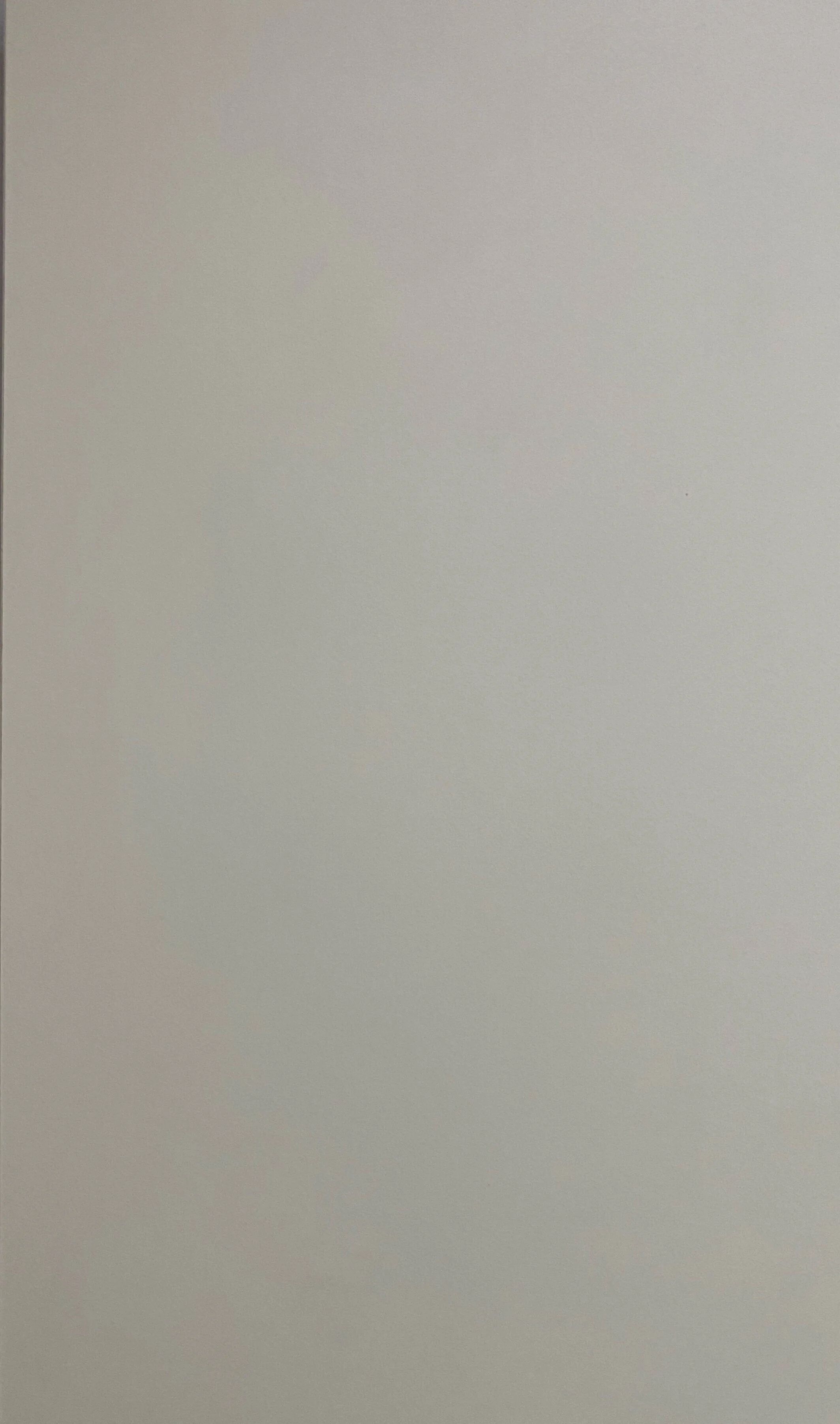

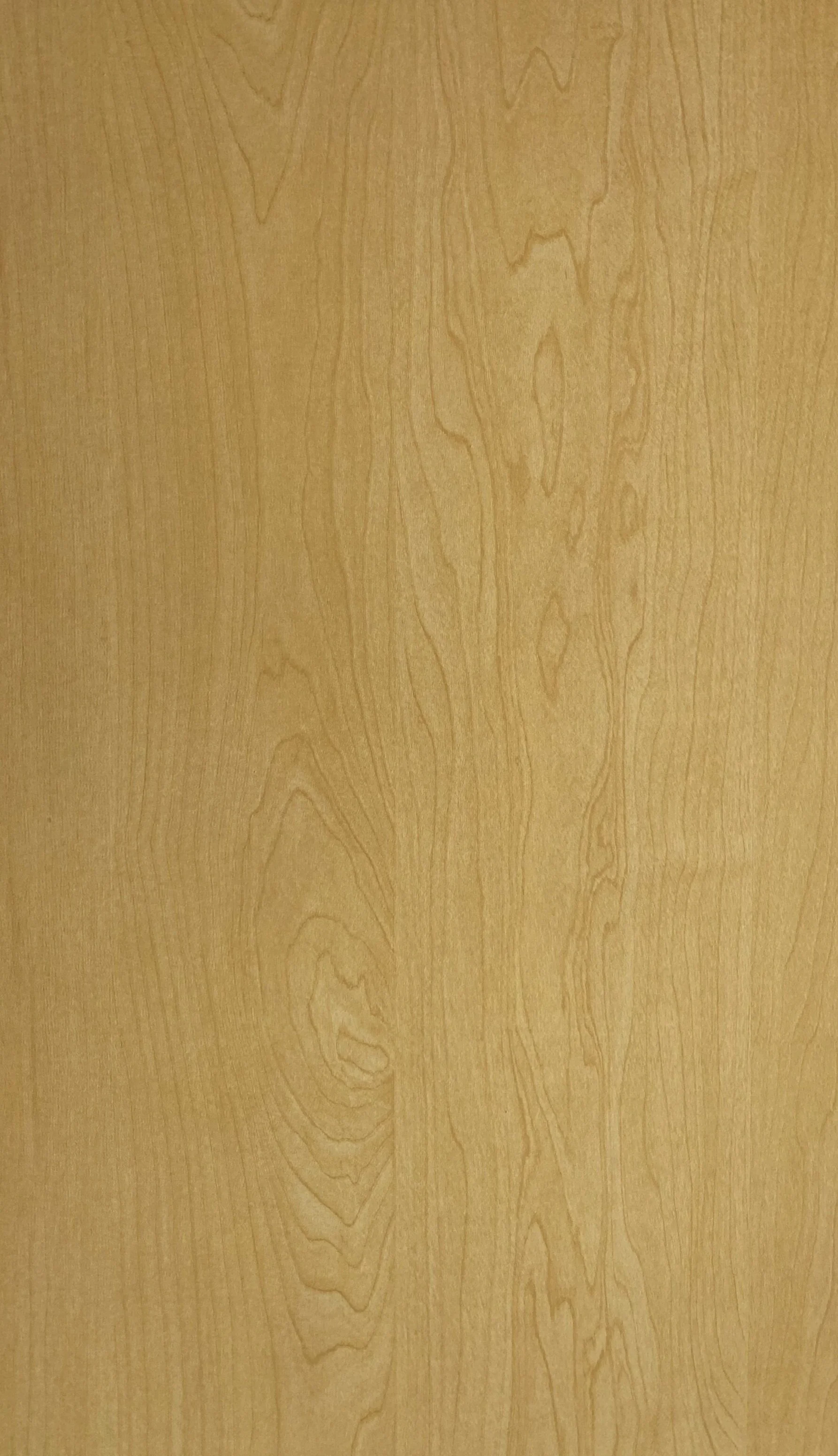

• Sable, Shadow, Elegant Maple, Coffee, Glacier White, Folkstone Gray

Hardware

• Hinges – 6-Way adjustable two-piece concealed hinges easily take doors on and off

• Soft close hinges available for additional charge

• Drawer Slides – White epoxy undermount drawer slides standard

• Full extension soft close drawer slides available for additional charge

• Handles/Pulls – Wide variety of cabinet handles and pulls are available at additional charge
